Description

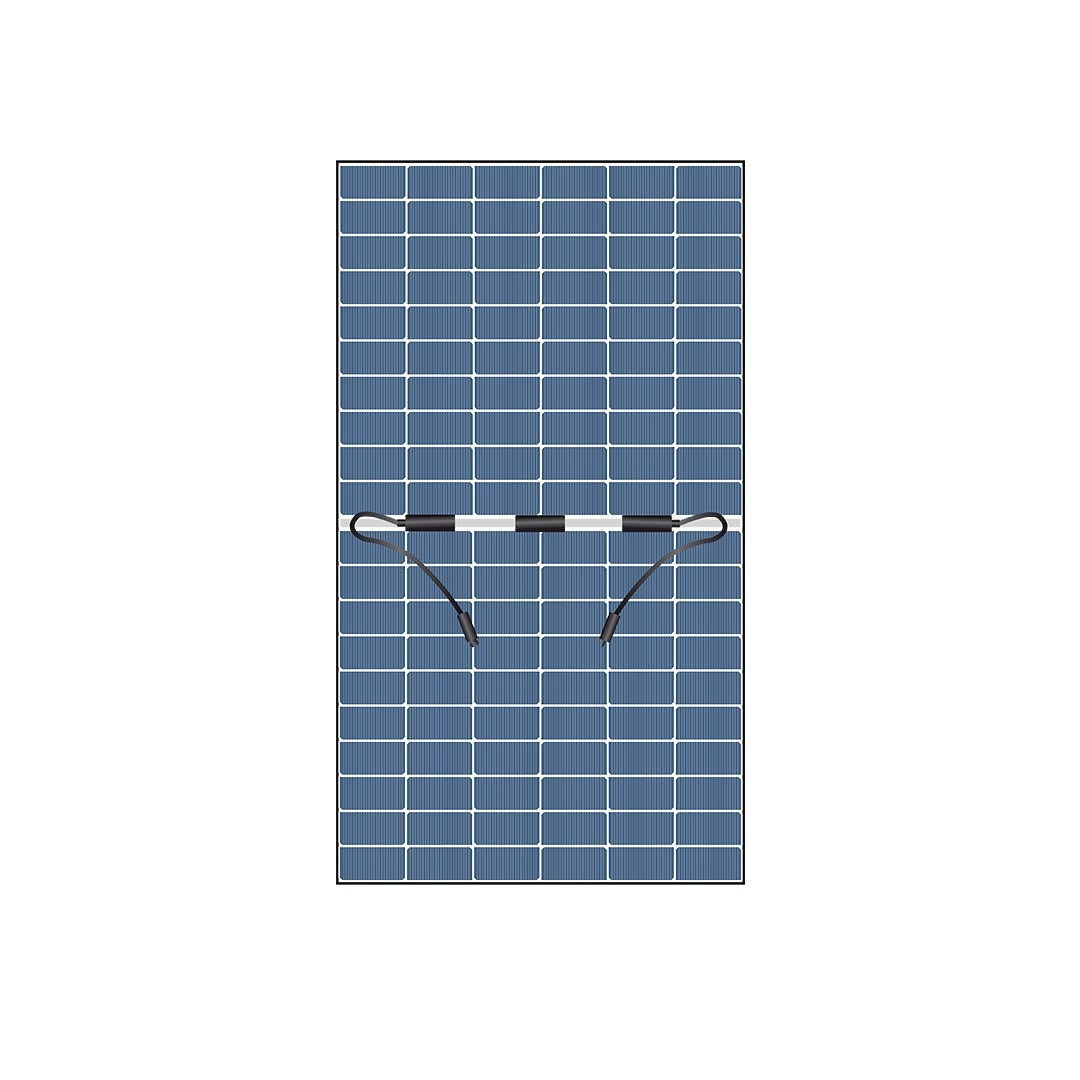

Luno Solar has launched its latest innovation, the Bull 660Wp HJT Dual-Glass Solar Panel, featuring cutting-edge Heterojunction Technology (HJT) for superior performance. With a high conversion efficiency of up to 23.3%, this advanced panel is ideal for solar farms, ground-mounted installations, and domestic, commercial, and industrial projects. It delivers an impressive peak power output of 660 Wp, with a total efficiency of up to 23.33% (front + rear side). It consists of a junction box that is IP68-rated and 3 bypasses, ensuring better protection. Designed with 120 cells, it maximizes energy generation, further boosting output by up to 20%. When mounted at a height of 1.5 meters, it enhances power production by 7-20%, making it a powerful and efficient choice for high-performance solar solutions.
- Technology: Heterojunction Technology (HJT), N-type Bifacial Solar Cell, Zero Bus Bars.
- Higher Power Gains & Lower Losses: The panel cell’s efficiency will be 23.33%, with 85% of that coming from the front and 10% less from the backside by the bi-facial feature.
- Reduced Degradation: 1% degradation in the first year, and afterward it will degrade by 0.5% annually.
- Superior Quality: Dual glass construction for enhanced durability, reliability & performance of solar panel modules.
- Premium Warranty: Comes with a 15-year manufacturing warranty and a 30-year performance warranty, ensuring sustained efficiency over time.
Electrical Specifications
| Peak Power Pmax (W) | 660 |
| Maximum Power Voltage Vmp (V) |
40.30 |
| Maximum Power Current Imp (A) |
16.38 |
| Open Circuit Voltage VOC (V) |
44.88 |
| Short Circuit Current ISC (A) |
17.28 |
| Module Efficiency (%) | 23.33 |
| Power Tolerance (W) | 0~+5 |
| *STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temperature 25°C |
Mechanical Specifications
| Number of Cells | 120 pieces (6*20) |
| Module Dimensions | (2172*1303*40) mm |
| Weight | 30.115 kg |
| Front Glass | 2.0 mm, High transmission coated glass |
| Back Glass | 2.0 mm, Semi-tempered glass |
| Frame | Anodized Aluminium alloy |
| Junction Box | IP68 rated |
| Cable | 4.0 mm |
| No. of Diodes | 3 |
| Wind Pressure / Snow Pressure | 2400 Pa / 5400 Pa |
| Connector | MC4 |
Warranty
The degradation in the first year is 1%, and from the second year onwards, the annual degradation does not exceed 0.30%
| Product Warranty | 15-year |
| Performance warranty | 30-year |
