Description
The Luno Solar BULL 585 Wp panel with advanced TOPCon technology delivers an impressive peak power output of 585 Wp, with a high conversion efficiency of up to 22.64%. Its bi-facial design enables the rear side to generate additional power, increasing overall efficiency to 25% and boosting total output to 700 Wp. This advanced solar module features 144 cells and 16 busbars, ensuring superior energy production and reliability. It consists of a junction box that is MC4 IP68-rated, ensuring better protection. Designed for maximum performance, the Bull 585 Wp panel is an excellent choice for high-efficiency solar installations.
- Technology – N-Type TOPCon Bifacial, generates power from both sides, boosting overall performance and increasing efficiency.
- High Efficiency – Achieves 22.64% module efficiency for optimal energy conversion.
- Durable & Weather-Resistant – Built to perform efficiently in diverse environmental conditions with an IP68 rating for superior waterproofing and dust protection.
- Long-Lasting Performance – Provides higher lifetime energy output compared to traditional panels, offering a reliable and sustainable energy solution for the long term.
- Premium Warranty – Comes with a 10-year manufacturing warranty and a 30-year performance warranty.

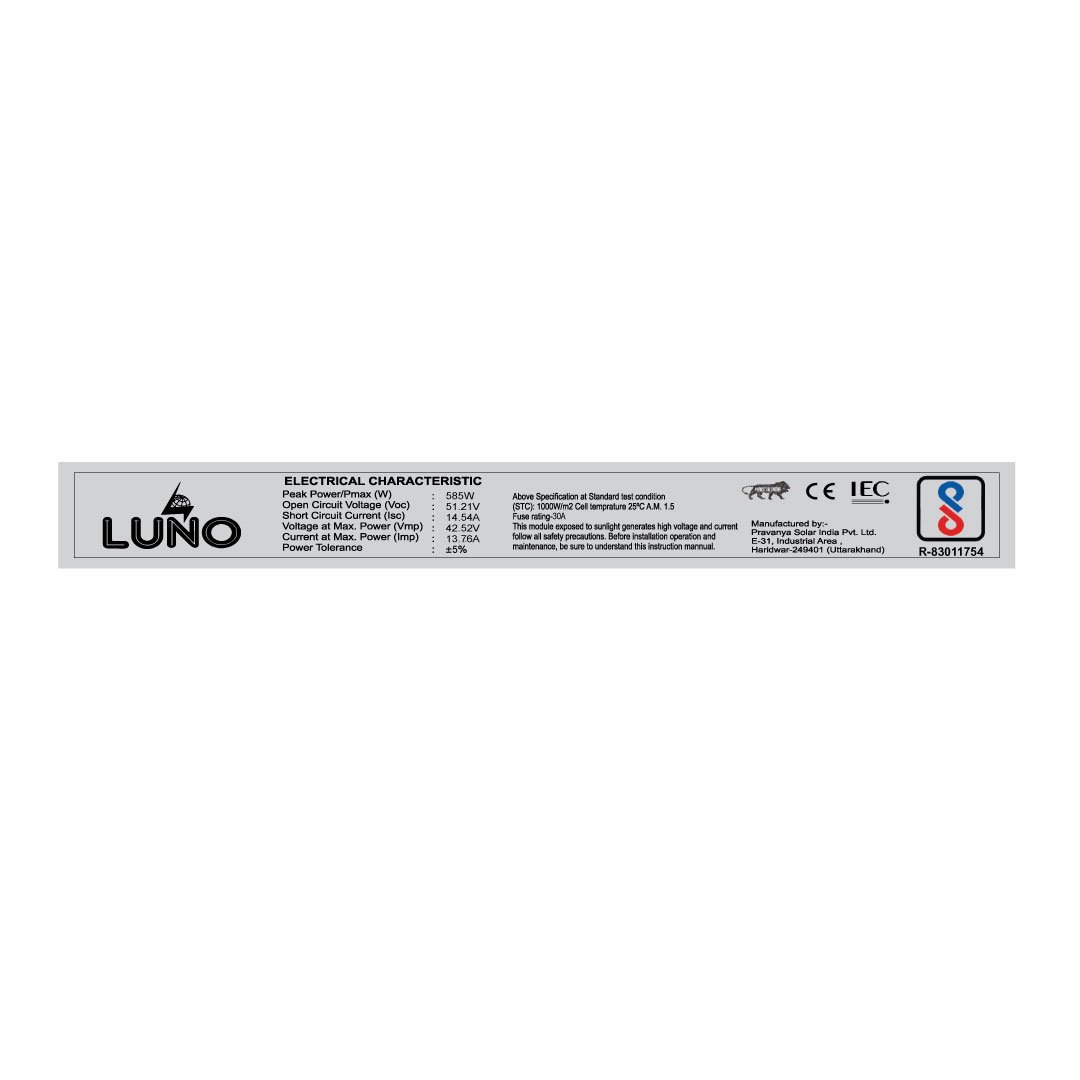

Electrical Specifications:
| Module Type | BULL 585 Wp bifacial |
| Maximum Power (Pmax) [W] | 585 |
| Operating voltage [V] | 24 |
| Maximum Power Voltage (Vmp) [V] | 42.52 |
| Maximum Power Current (Imp) [A] | 13.76 |
| Open Circuit Voltage (Voc) [V] | 51.21 |
| Short Circuit Current (Isc) [A] | 14.54 |
| Module Efficiency [%] | 22.64% |
| Additional Features | Better Weak Illumination Response |
| ZERO LID (Light Induced Degradation) |
Mechanical Specifications:
| Panel Technology | TOPCon |
| Space Required | 7.47 x 3.72 =27 sq ft |
| Number of cells | 144 Cells (12×6) (12×6) |
| Number of Bus bar | 16 BB |
| Module Dimension | (2278 L x 1134 W x 40 D) mm |
| Weight | 32 kg |
| Double Glass | AR-coating toughened glass, 2+2 mm |
| Frame | Black Anodized Aluminium |
| J-Box | Split Junction-Box (IP68) |
| Cable | 400 mm, 4 m² |
| Connector | MC4 IP68 compatible |
| Maximum Test Load, Push/Pull | 5400 Pa / 2400 Pa |
| Additional Features | Better temperature coefficient |
| 10-30% Additional Power/Energy generation |
Shipping Details
| Weight (Including Cases) | 33 kg |
| Dimensions (L x W x H) | (2278 L x 1134 W x 40 D) mm |
